MPEG-4 error with hardware acceleration enabled #4514

Closed
opened 2026-02-07 00:54:13 +03:00 by OVERLORD · 3 comments
Owner

Originally created by @Emporea on GitHub (Jan 12, 2023).

Transcoding enabled:

2 example media info that are not working. I get this response when trying to play them.

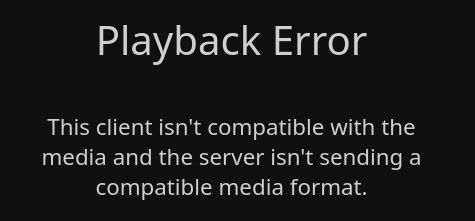

Screenshot from 2023-01-12 15-07-54

Video
Title384p MPEG4 SDR
CodecMPEG4
Codec tagDX50
Resolution640x368
Aspect ratio40:23
InterlacedNo
Framerate25
Bitrate989 kbps
Bit depth8 bit
Video rangeSDR
Video range typeSDR
Pixel formatyuv420p
Ref frames1

Video
Title404p MPEG4 SDR
CodecMPEG4
Codec tagXVID
ProfileAdvanced Simple Profile
Level5
Resolution720x400
Aspect ratio16:9
InterlacedNo
Framerate25
Bitrate992 kbps
Bit depth8 bit
Video rangeSDR
Video range typeSDR
Pixel formatyuv420p
Ref frames1


Other codecs seem to do fine. It also plays the mpeg-4 files when I disable hardware acceleration.

FFMPEG logs:

[15:11:52] [INF] [106] Jellyfin.Api.Helpers.MediaInfoHelper: User policy for www-data. EnablePlaybackRemuxing: True EnableVideoPlaybackTranscoding: True EnableAudioPlaybackTranscoding: True
[15:11:52] [INF] [106] Jellyfin.Api.Helpers.MediaInfoHelper: StreamBuilder.BuildVideoItem( Profile=Anonymous Profile, Path=/media/shows/Stromberg/staffel3/st3dvd1.avi, AudioStreamIndex=null, SubtitleStreamIndex=null ) => ( PlayMethod=Transcode, TranscodeReason=VideoCodecNotSupported ) media:/videos/20542af6-e853-5796-80b2-7e4e761863ce/master.m3u8?MediaSourceId=20542af6e853579680b27e4e761863ce&VideoCodec=h264&AudioCodec=mp3&AudioStreamIndex=1&VideoBitrate=246953519&AudioBitrate=105304&AudioSampleRate=48000&MaxFramerate=25&api_key=<token>&TranscodingMaxAudioChannels=2&RequireAvc=false&Tag=d95b235d3402d74f69078d0116183554&SegmentContainer=ts&MinSegments=1&BreakOnNonKeyFrames=True&mpeg4-level=5&mpeg4-videobitdepth=8&mpeg4-profile=advancedsimpleprofile&mpeg4-audiochannels=2&h264-profile=high,main,baseline,constrainedbaseline&h264-rangetype=SDR&h264-level=52&h264-deinterlace=true&TranscodeReasons=VideoCodecNotSupported
[15:11:53] [INF] [106] Jellyfin.Api.Controllers.DynamicHlsController: Current HLS implementation doesn't support non-keyframe breaks but one is requested, ignoring that request
[15:11:53] [INF] [106] Jellyfin.Api.Helpers.TranscodingJobHelper: /usr/lib/jellyfin-ffmpeg/ffmpeg -analyzeduration 200M -init_hw_device vaapi=va:,driver=iHD -filter_hw_device va -autorotate 0 -i file:"/media/shows/Stromberg/staffel3/st3dvd1.avi" -map_metadata -1 -map_chapters -1 -threads 0 -map 0:0 -map 0:1 -map -0:s -codec:v:0 h264_vaapi -low_power 1 -rc_mode VBR -b:v 4964210 -maxrate 4964210 -bufsize 9928420 -profile:v:0 high -force_key_frames:0 "expr:gte(t,0+n_forced*3)" -vf "setparams=color_primaries=bt709:color_trc=bt709:colorspace=bt709,scale=trunc(min(max(iw\,ih*a)\,min(720\,400*a))/2)*2:trunc(min(max(iw/a\,ih)\,min(720/a\,400))/2)*2,format=nv12,hwupload=derive_device=vaapi" -codec:a:0 copy -copyts -avoid_negative_ts disabled -max_muxing_queue_size 2048 -f hls -max_delay 5000000 -hls_time 3 -hls_segment_type mpegts -start_number 0 -hls_segment_filename "/config/transcodes/4a52f148856c406390c8587b48e32ddf%d.ts" -hls_playlist_type vod -hls_list_size 0 -y "/config/transcodes/4a52f148856c406390c8587b48e32ddf.m3u8"
[15:11:53] [ERR] [106] Jellyfin.Api.Helpers.TranscodingJobHelper: FFmpeg exited with code 1
[15:11:53] [ERR] [106] Jellyfin.Server.Middleware.ExceptionMiddleware: Error processing request. URL GET /videos/20542af6-e853-5796-80b2-7e4e761863ce/hls1/main/0.ts.
MediaBrowser.Common.FfmpegException: FFmpeg exited with code 1
   at Jellyfin.Api.Helpers.TranscodingJobHelper.StartFfMpeg(StreamState state, String outputPath, String commandLineArguments, HttpRequest request, TranscodingJobType transcodingJobType, CancellationTokenSource cancellationTokenSource, String workingDirectory)
   at Jellyfin.Api.Controllers.DynamicHlsController.GetDynamicSegment(StreamingRequestDto streamingRequest, Int32 segmentId)
   at Jellyfin.Api.Controllers.DynamicHlsController.GetHlsVideoSegment(Guid itemId, String playlistId, Int32 segmentId, String container, Int64 runtimeTicks, Int64 actualSegmentLengthTicks, Nullable`1 static, String params, String tag, String deviceProfileId, String playSessionId, String segmentContainer, Nullable`1 segmentLength, Nullable`1 minSegments, String mediaSourceId, String deviceId, String audioCodec, Nullable`1 enableAutoStreamCopy, Nullable`1 allowVideoStreamCopy, Nullable`1 allowAudioStreamCopy, Nullable`1 breakOnNonKeyFrames, Nullable`1 audioSampleRate, Nullable`1 maxAudioBitDepth, Nullable`1 audioBitRate, Nullable`1 audioChannels, Nullable`1 maxAudioChannels, String profile, String level, Nullable`1 framerate, Nullable`1 maxFramerate, Nullable`1 copyTimestamps, Nullable`1 startTimeTicks, Nullable`1 width, Nullable`1 height, Nullable`1 maxWidth, Nullable`1 maxHeight, Nullable`1 videoBitRate, Nullable`1 subtitleStreamIndex, Nullable`1 subtitleMethod, Nullable`1 maxRefFrames, Nullable`1 maxVideoBitDepth, Nullable`1 requireAvc, Nullable`1 deInterlace, Nullable`1 requireNonAnamorphic, Nullable`1 transcodingMaxAudioChannels, Nullable`1 cpuCoreLimit, String liveStreamId, Nullable`1 enableMpegtsM2TsMode, String videoCodec, String subtitleCodec, String transcodeReasons, Nullable`1 audioStreamIndex, Nullable`1 videoStreamIndex, Nullable`1 context, Dictionary`2 streamOptions)
   at lambda_method1585(Closure , Object )
   at Microsoft.AspNetCore.Mvc.Infrastructure.ActionMethodExecutor.TaskOfActionResultExecutor.Execute(IActionResultTypeMapper mapper, ObjectMethodExecutor executor, Object controller, Object[] arguments)
   at Microsoft.AspNetCore.Mvc.Infrastructure.ControllerActionInvoker.<InvokeActionMethodAsync>g__Awaited|12_0(ControllerActionInvoker invoker, ValueTask`1 actionResultValueTask)
   at Microsoft.AspNetCore.Mvc.Infrastructure.ControllerActionInvoker.<InvokeNextActionFilterAsync>g__Awaited|10_0(ControllerActionInvoker invoker, Task lastTask, State next, Scope scope, Object state, Boolean isCompleted)
   at Microsoft.AspNetCore.Mvc.Infrastructure.ControllerActionInvoker.Rethrow(ActionExecutedContextSealed context)
   at Microsoft.AspNetCore.Mvc.Infrastructure.ControllerActionInvoker.Next(State& next, Scope& scope, Object& state, Boolean& isCompleted)
   at Microsoft.AspNetCore.Mvc.Infrastructure.ControllerActionInvoker.<InvokeInnerFilterAsync>g__Awaited|13_0(ControllerActionInvoker invoker, Task lastTask, State next, Scope scope, Object state, Boolean isCompleted)
   at Microsoft.AspNetCore.Mvc.Infrastructure.ResourceInvoker.<InvokeNextResourceFilter>g__Awaited|25_0(ResourceInvoker invoker, Task lastTask, State next, Scope scope, Object state, Boolean isCompleted)
   at Microsoft.AspNetCore.Mvc.Infrastructure.ResourceInvoker.Rethrow(ResourceExecutedContextSealed context)
   at Microsoft.AspNetCore.Mvc.Infrastructure.ResourceInvoker.Next(State& next, Scope& scope, Object& state, Boolean& isCompleted)
   at Microsoft.AspNetCore.Mvc.Infrastructure.ResourceInvoker.<InvokeFilterPipelineAsync>g__Awaited|20_0(ResourceInvoker invoker, Task lastTask, State next, Scope scope, Object state, Boolean isCompleted)
   at Microsoft.AspNetCore.Mvc.Infrastructure.ResourceInvoker.<InvokeAsync>g__Awaited|17_0(ResourceInvoker invoker, Task task, IDisposable scope)
   at Microsoft.AspNetCore.Mvc.Infrastructure.ResourceInvoker.<InvokeAsync>g__Awaited|17_0(ResourceInvoker invoker, Task task, IDisposable scope)
   at Microsoft.AspNetCore.Routing.EndpointMiddleware.<Invoke>g__AwaitRequestTask|6_0(Endpoint endpoint, Task requestTask, ILogger logger)
   at Jellyfin.Server.Middleware.ServerStartupMessageMiddleware.Invoke(HttpContext httpContext, IServerApplicationHost serverApplicationHost, ILocalizationManager localizationManager)
   at Jellyfin.Server.Middleware.WebSocketHandlerMiddleware.Invoke(HttpContext httpContext, IWebSocketManager webSocketManager)
   at Jellyfin.Server.Middleware.IpBasedAccessValidationMiddleware.Invoke(HttpContext httpContext, INetworkManager networkManager)
   at Jellyfin.Server.Middleware.LanFilteringMiddleware.Invoke(HttpContext httpContext, INetworkManager networkManager, IServerConfigurationManager serverConfigurationManager)
   at Microsoft.AspNetCore.Authorization.Policy.AuthorizationMiddlewareResultHandler.HandleAsync(RequestDelegate next, HttpContext context, AuthorizationPolicy policy, PolicyAuthorizationResult authorizeResult)
   at Microsoft.AspNetCore.Authorization.AuthorizationMiddleware.Invoke(HttpContext context)
   at Jellyfin.Server.Middleware.QueryStringDecodingMiddleware.Invoke(HttpContext httpContext)
   at Swashbuckle.AspNetCore.ReDoc.ReDocMiddleware.Invoke(HttpContext httpContext)
   at Swashbuckle.AspNetCore.SwaggerUI.SwaggerUIMiddleware.Invoke(HttpContext httpContext)
   at Swashbuckle.AspNetCore.Swagger.SwaggerMiddleware.Invoke(HttpContext httpContext, ISwaggerProvider swaggerProvider)
   at Microsoft.AspNetCore.Authentication.AuthenticationMiddleware.Invoke(HttpContext context)
   at Jellyfin.Server.Middleware.RobotsRedirectionMiddleware.Invoke(HttpContext httpContext)
   at Jellyfin.Server.Middleware.LegacyEmbyRouteRewriteMiddleware.Invoke(HttpContext httpContext)
   at Microsoft.AspNetCore.ResponseCompression.ResponseCompressionMiddleware.InvokeCore(HttpContext context)
   at Jellyfin.Server.Middleware.ResponseTimeMiddleware.Invoke(HttpContext context, IServerConfigurationManager serverConfigurationManager)
   at Jellyfin.Server.Middleware.ExceptionMiddleware.Invoke(HttpContext context)

Originally created by @Emporea on GitHub (Jan 12, 2023). Transcoding enabled: ![image](https://user-images.githubusercontent.com/21969523/212087533-2280660f-7ee2-4b96-a7db-eb4ff977ec01.png) 2 example media info that are not working. I get this response when trying to play them. ![Screenshot from 2023-01-12 15-07-54](https://user-images.githubusercontent.com/21969523/212088510-22d4c842-4591-4be1-8b8b-12195f053701.png) Video Title384p MPEG4 SDR CodecMPEG4 Codec tagDX50 Resolution640x368 Aspect ratio40:23 InterlacedNo Framerate25 Bitrate989 kbps Bit depth8 bit Video rangeSDR Video range typeSDR Pixel formatyuv420p Ref frames1 Video Title404p MPEG4 SDR CodecMPEG4 Codec tagXVID ProfileAdvanced Simple Profile Level5 Resolution720x400 Aspect ratio16:9 InterlacedNo Framerate25 Bitrate992 kbps Bit depth8 bit Video rangeSDR Video range typeSDR Pixel formatyuv420p Ref frames1 --- Other codecs seem to do fine. It also plays the mpeg-4 files when I disable hardware acceleration. FFMPEG logs: ``` [15:11:52] [INF] [106] Jellyfin.Api.Helpers.MediaInfoHelper: User policy for www-data. EnablePlaybackRemuxing: True EnableVideoPlaybackTranscoding: True EnableAudioPlaybackTranscoding: True [15:11:52] [INF] [106] Jellyfin.Api.Helpers.MediaInfoHelper: StreamBuilder.BuildVideoItem( Profile=Anonymous Profile, Path=/media/shows/Stromberg/staffel3/st3dvd1.avi, AudioStreamIndex=null, SubtitleStreamIndex=null ) => ( PlayMethod=Transcode, TranscodeReason=VideoCodecNotSupported ) media:/videos/20542af6-e853-5796-80b2-7e4e761863ce/master.m3u8?MediaSourceId=20542af6e853579680b27e4e761863ce&VideoCodec=h264&AudioCodec=mp3&AudioStreamIndex=1&VideoBitrate=246953519&AudioBitrate=105304&AudioSampleRate=48000&MaxFramerate=25&api_key=<token>&TranscodingMaxAudioChannels=2&RequireAvc=false&Tag=d95b235d3402d74f69078d0116183554&SegmentContainer=ts&MinSegments=1&BreakOnNonKeyFrames=True&mpeg4-level=5&mpeg4-videobitdepth=8&mpeg4-profile=advancedsimpleprofile&mpeg4-audiochannels=2&h264-profile=high,main,baseline,constrainedbaseline&h264-rangetype=SDR&h264-level=52&h264-deinterlace=true&TranscodeReasons=VideoCodecNotSupported [15:11:53] [INF] [106] Jellyfin.Api.Controllers.DynamicHlsController: Current HLS implementation doesn't support non-keyframe breaks but one is requested, ignoring that request [15:11:53] [INF] [106] Jellyfin.Api.Helpers.TranscodingJobHelper: /usr/lib/jellyfin-ffmpeg/ffmpeg -analyzeduration 200M -init_hw_device vaapi=va:,driver=iHD -filter_hw_device va -autorotate 0 -i file:"/media/shows/Stromberg/staffel3/st3dvd1.avi" -map_metadata -1 -map_chapters -1 -threads 0 -map 0:0 -map 0:1 -map -0:s -codec:v:0 h264_vaapi -low_power 1 -rc_mode VBR -b:v 4964210 -maxrate 4964210 -bufsize 9928420 -profile:v:0 high -force_key_frames:0 "expr:gte(t,0+n_forced*3)" -vf "setparams=color_primaries=bt709:color_trc=bt709:colorspace=bt709,scale=trunc(min(max(iw\,ih*a)\,min(720\,400*a))/2)*2:trunc(min(max(iw/a\,ih)\,min(720/a\,400))/2)*2,format=nv12,hwupload=derive_device=vaapi" -codec:a:0 copy -copyts -avoid_negative_ts disabled -max_muxing_queue_size 2048 -f hls -max_delay 5000000 -hls_time 3 -hls_segment_type mpegts -start_number 0 -hls_segment_filename "/config/transcodes/4a52f148856c406390c8587b48e32ddf%d.ts" -hls_playlist_type vod -hls_list_size 0 -y "/config/transcodes/4a52f148856c406390c8587b48e32ddf.m3u8" [15:11:53] [ERR] [106] Jellyfin.Api.Helpers.TranscodingJobHelper: FFmpeg exited with code 1 [15:11:53] [ERR] [106] Jellyfin.Server.Middleware.ExceptionMiddleware: Error processing request. URL GET /videos/20542af6-e853-5796-80b2-7e4e761863ce/hls1/main/0.ts. MediaBrowser.Common.FfmpegException: FFmpeg exited with code 1 at Jellyfin.Api.Helpers.TranscodingJobHelper.StartFfMpeg(StreamState state, String outputPath, String commandLineArguments, HttpRequest request, TranscodingJobType transcodingJobType, CancellationTokenSource cancellationTokenSource, String workingDirectory) at Jellyfin.Api.Controllers.DynamicHlsController.GetDynamicSegment(StreamingRequestDto streamingRequest, Int32 segmentId) at Jellyfin.Api.Controllers.DynamicHlsController.GetHlsVideoSegment(Guid itemId, String playlistId, Int32 segmentId, String container, Int64 runtimeTicks, Int64 actualSegmentLengthTicks, Nullable`1 static, String params, String tag, String deviceProfileId, String playSessionId, String segmentContainer, Nullable`1 segmentLength, Nullable`1 minSegments, String mediaSourceId, String deviceId, String audioCodec, Nullable`1 enableAutoStreamCopy, Nullable`1 allowVideoStreamCopy, Nullable`1 allowAudioStreamCopy, Nullable`1 breakOnNonKeyFrames, Nullable`1 audioSampleRate, Nullable`1 maxAudioBitDepth, Nullable`1 audioBitRate, Nullable`1 audioChannels, Nullable`1 maxAudioChannels, String profile, String level, Nullable`1 framerate, Nullable`1 maxFramerate, Nullable`1 copyTimestamps, Nullable`1 startTimeTicks, Nullable`1 width, Nullable`1 height, Nullable`1 maxWidth, Nullable`1 maxHeight, Nullable`1 videoBitRate, Nullable`1 subtitleStreamIndex, Nullable`1 subtitleMethod, Nullable`1 maxRefFrames, Nullable`1 maxVideoBitDepth, Nullable`1 requireAvc, Nullable`1 deInterlace, Nullable`1 requireNonAnamorphic, Nullable`1 transcodingMaxAudioChannels, Nullable`1 cpuCoreLimit, String liveStreamId, Nullable`1 enableMpegtsM2TsMode, String videoCodec, String subtitleCodec, String transcodeReasons, Nullable`1 audioStreamIndex, Nullable`1 videoStreamIndex, Nullable`1 context, Dictionary`2 streamOptions) at lambda_method1585(Closure , Object ) at Microsoft.AspNetCore.Mvc.Infrastructure.ActionMethodExecutor.TaskOfActionResultExecutor.Execute(IActionResultTypeMapper mapper, ObjectMethodExecutor executor, Object controller, Object[] arguments) at Microsoft.AspNetCore.Mvc.Infrastructure.ControllerActionInvoker.<InvokeActionMethodAsync>g__Awaited|12_0(ControllerActionInvoker invoker, ValueTask`1 actionResultValueTask) at Microsoft.AspNetCore.Mvc.Infrastructure.ControllerActionInvoker.<InvokeNextActionFilterAsync>g__Awaited|10_0(ControllerActionInvoker invoker, Task lastTask, State next, Scope scope, Object state, Boolean isCompleted) at Microsoft.AspNetCore.Mvc.Infrastructure.ControllerActionInvoker.Rethrow(ActionExecutedContextSealed context) at Microsoft.AspNetCore.Mvc.Infrastructure.ControllerActionInvoker.Next(State& next, Scope& scope, Object& state, Boolean& isCompleted) at Microsoft.AspNetCore.Mvc.Infrastructure.ControllerActionInvoker.<InvokeInnerFilterAsync>g__Awaited|13_0(ControllerActionInvoker invoker, Task lastTask, State next, Scope scope, Object state, Boolean isCompleted) at Microsoft.AspNetCore.Mvc.Infrastructure.ResourceInvoker.<InvokeNextResourceFilter>g__Awaited|25_0(ResourceInvoker invoker, Task lastTask, State next, Scope scope, Object state, Boolean isCompleted) at Microsoft.AspNetCore.Mvc.Infrastructure.ResourceInvoker.Rethrow(ResourceExecutedContextSealed context) at Microsoft.AspNetCore.Mvc.Infrastructure.ResourceInvoker.Next(State& next, Scope& scope, Object& state, Boolean& isCompleted) at Microsoft.AspNetCore.Mvc.Infrastructure.ResourceInvoker.<InvokeFilterPipelineAsync>g__Awaited|20_0(ResourceInvoker invoker, Task lastTask, State next, Scope scope, Object state, Boolean isCompleted) at Microsoft.AspNetCore.Mvc.Infrastructure.ResourceInvoker.<InvokeAsync>g__Awaited|17_0(ResourceInvoker invoker, Task task, IDisposable scope) at Microsoft.AspNetCore.Mvc.Infrastructure.ResourceInvoker.<InvokeAsync>g__Awaited|17_0(ResourceInvoker invoker, Task task, IDisposable scope) at Microsoft.AspNetCore.Routing.EndpointMiddleware.<Invoke>g__AwaitRequestTask|6_0(Endpoint endpoint, Task requestTask, ILogger logger) at Jellyfin.Server.Middleware.ServerStartupMessageMiddleware.Invoke(HttpContext httpContext, IServerApplicationHost serverApplicationHost, ILocalizationManager localizationManager) at Jellyfin.Server.Middleware.WebSocketHandlerMiddleware.Invoke(HttpContext httpContext, IWebSocketManager webSocketManager) at Jellyfin.Server.Middleware.IpBasedAccessValidationMiddleware.Invoke(HttpContext httpContext, INetworkManager networkManager) at Jellyfin.Server.Middleware.LanFilteringMiddleware.Invoke(HttpContext httpContext, INetworkManager networkManager, IServerConfigurationManager serverConfigurationManager) at Microsoft.AspNetCore.Authorization.Policy.AuthorizationMiddlewareResultHandler.HandleAsync(RequestDelegate next, HttpContext context, AuthorizationPolicy policy, PolicyAuthorizationResult authorizeResult) at Microsoft.AspNetCore.Authorization.AuthorizationMiddleware.Invoke(HttpContext context) at Jellyfin.Server.Middleware.QueryStringDecodingMiddleware.Invoke(HttpContext httpContext) at Swashbuckle.AspNetCore.ReDoc.ReDocMiddleware.Invoke(HttpContext httpContext) at Swashbuckle.AspNetCore.SwaggerUI.SwaggerUIMiddleware.Invoke(HttpContext httpContext) at Swashbuckle.AspNetCore.Swagger.SwaggerMiddleware.Invoke(HttpContext httpContext, ISwaggerProvider swaggerProvider) at Microsoft.AspNetCore.Authentication.AuthenticationMiddleware.Invoke(HttpContext context) at Jellyfin.Server.Middleware.RobotsRedirectionMiddleware.Invoke(HttpContext httpContext) at Jellyfin.Server.Middleware.LegacyEmbyRouteRewriteMiddleware.Invoke(HttpContext httpContext) at Microsoft.AspNetCore.ResponseCompression.ResponseCompressionMiddleware.InvokeCore(HttpContext context) at Jellyfin.Server.Middleware.ResponseTimeMiddleware.Invoke(HttpContext context, IServerConfigurationManager serverConfigurationManager) at Jellyfin.Server.Middleware.ExceptionMiddleware.Invoke(HttpContext context) ```
Author
Owner

@nyanmisaka commented on GitHub (Jan 12, 2023):

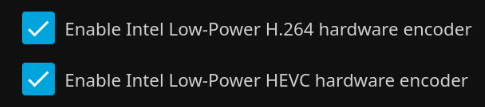

Uncheck these boxes and try again.

@nyanmisaka commented on GitHub (Jan 12, 2023): ![image](https://user-images.githubusercontent.com/14953024/212090841-cfc70721-a882-4398-bc02-98a6b635475c.png) Uncheck these boxes and try again.
Author
Owner

@Emporea commented on GitHub (Jan 12, 2023):

🙈 Yes that did the trick. I could swear i tried this. Thanks tho.

Can I leave this turned off or is it worth looking into the firmware configuration?

@Emporea commented on GitHub (Jan 12, 2023): 🙈 Yes that did the trick. I could swear i tried this. Thanks tho. Can I leave this turned off or is it worth looking into the firmware configuration?
Author
Owner

@nyanmisaka commented on GitHub (Jan 12, 2023):

Configure it when you encounter stuttering.

@nyanmisaka commented on GitHub (Jan 12, 2023): Configure it when you encounter stuttering.
